Top End Rebuild Kit Cylinder Piston for 2005-2011 Honda TRX500 Foreman 500
Product Type:
ATV&UTV缸体套件
- $158.91
$0.00- $158.91
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$158.91
Couldn't load pickup availability
Description
xDescription:

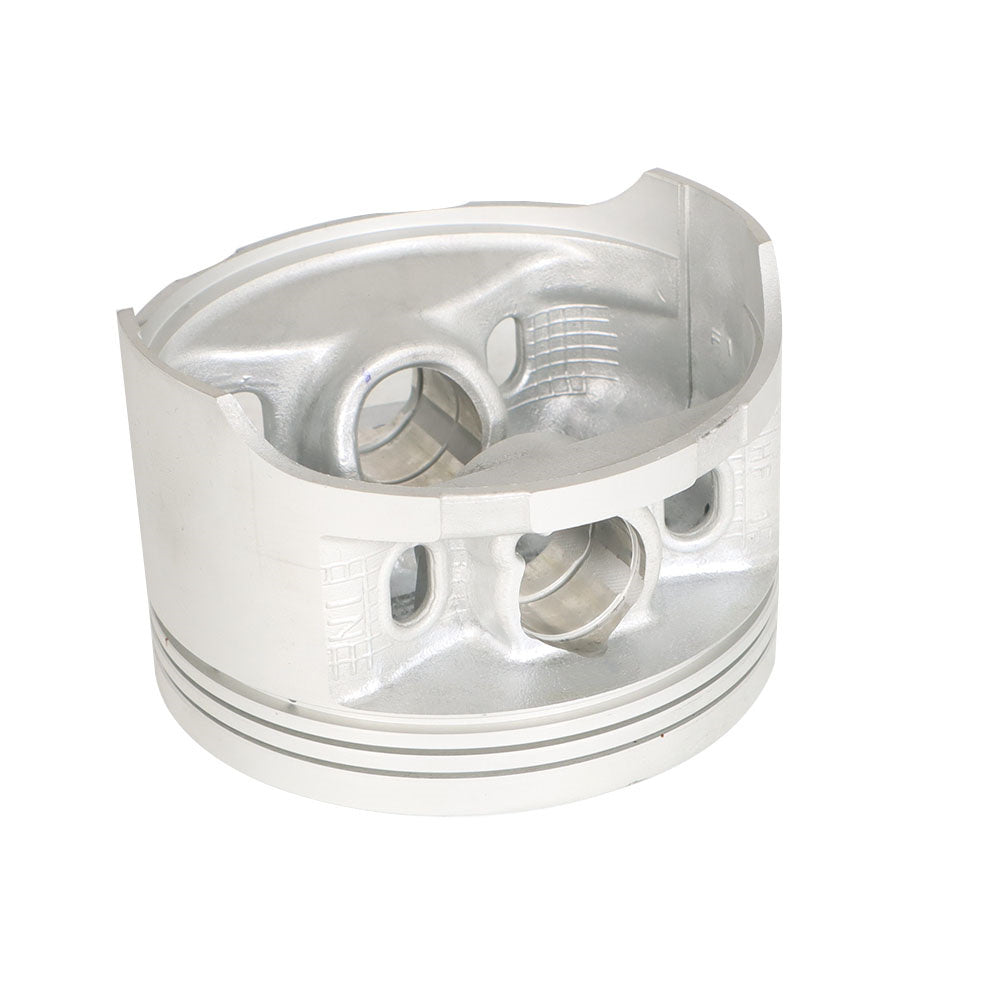

- Kit includes piston, rings, clips & top end gasket kit (you get exactly what is pictured).
Specification:
- Condition: Aftermarket 100% Brand New
- Quantity: 1 Set
- Piston Material: Forged Aluminum
- Actual Displacement: 475cc
- Bore Size: STD 92 mm
- Piston diameter: 91.96 mm
- Piston height: 59.23 mm
- Piston pin diameter: 20 mm
- Piston pin height: 62 mm
Replaces Part Number:
- Cylinder: 12100-HP0-A00
- Cylinder Base Gasket: 12191-HP0-A00
- Cylinder Head Gasket: 12251-HP0-A00
- Cylinder Head Cover Gasket: 12315-HP0-A00
- Ring Set: 13010-HP0-A01
- Pin, Piston: 13111-HN2-000
Fitment:
- Fit for Honda 2005-2011 TRX500FM/FE Fourtrax Foreman 4x4/S/ES
- Fit for Honda 2007-2011 TRX500FPE/FPM Fourtrax Foreman 4x4/ES/EPS
- Fit for Honda 2005-2006 TRX500TM Fourtrax Foreman 2x4
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Features:
- Cast piston has super-high silicone content for additional strength.
- Piston skirts are Molybdenium Teflon coated to minimize resistance/wear and provide extended life.
- Piston dome is anodized for superior heat resistance and longer lifespan.
- The gaskets use performance materials to increase durability and provide greater reliability.
- Includes all gaskets pictured to rebuild top end.
- Kit is for standard bore size - 92.00mm.
- All of the components within this kit are bolt-on ready for a hassle free installation.

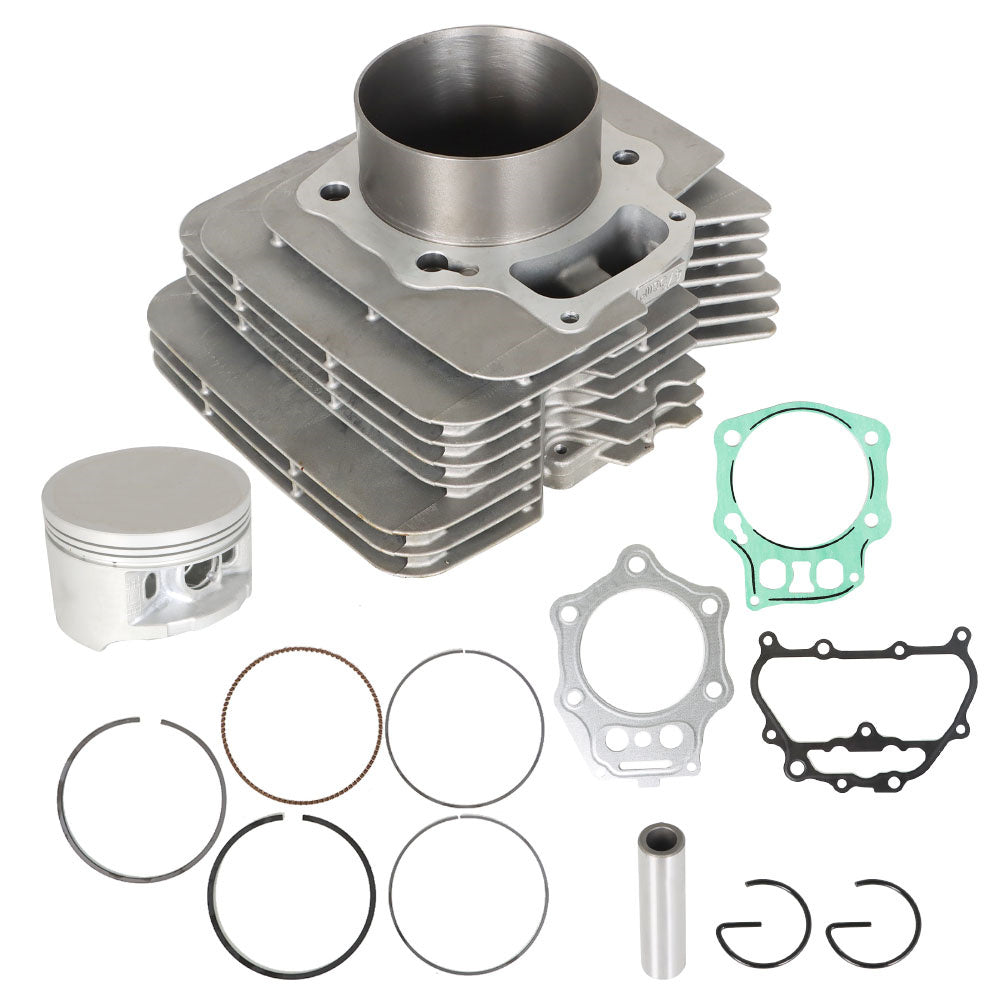

Package Includes:

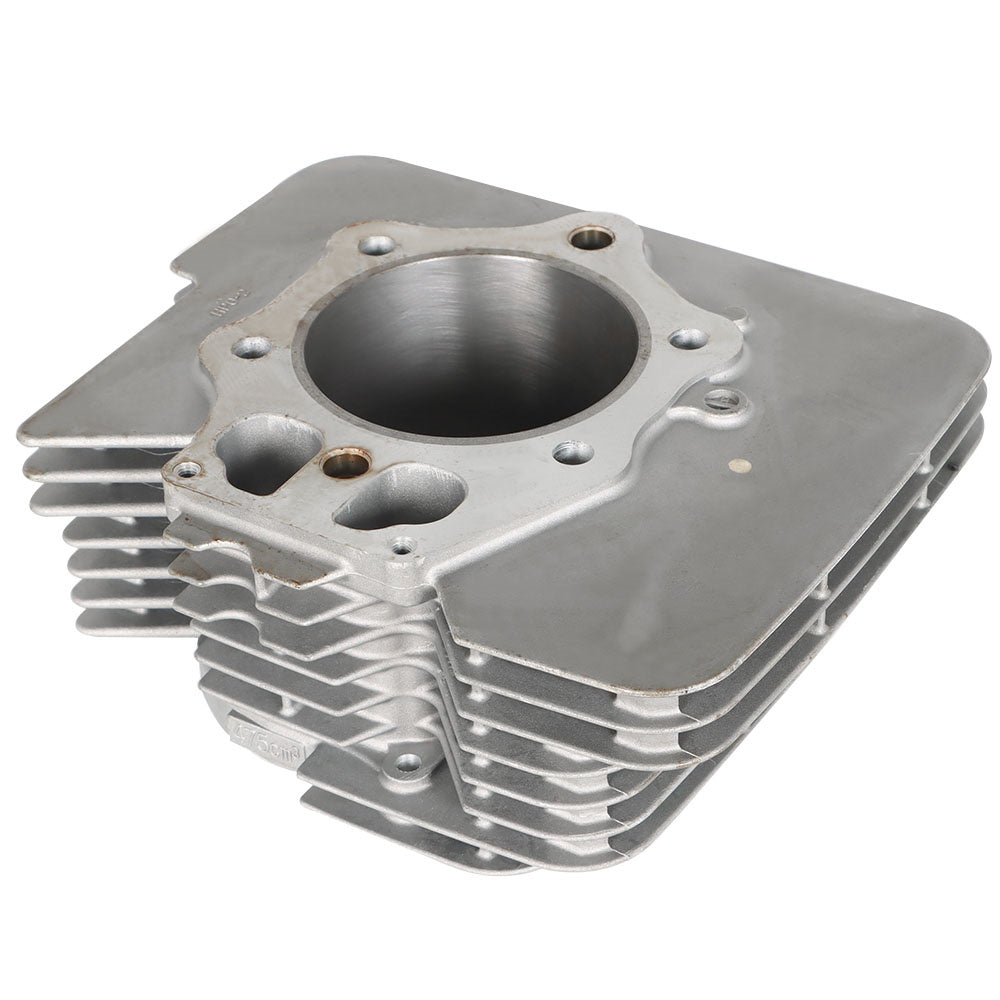

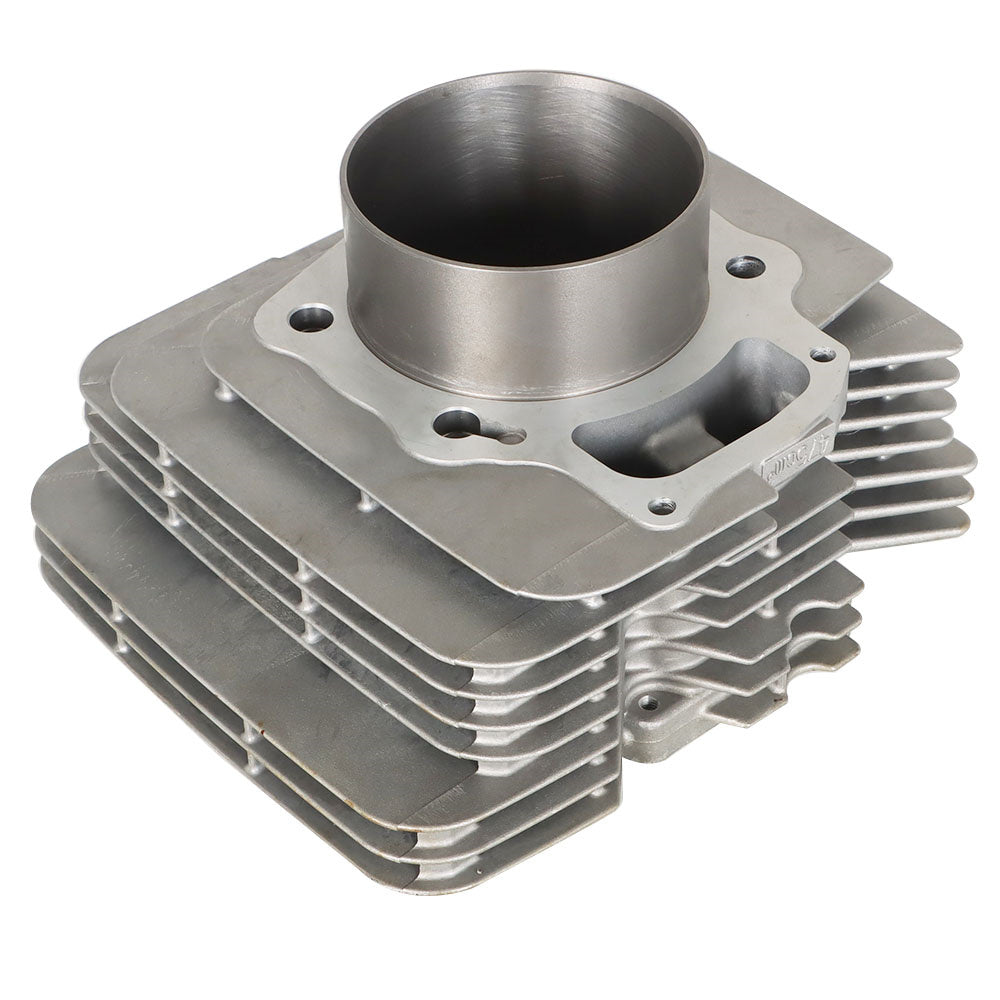

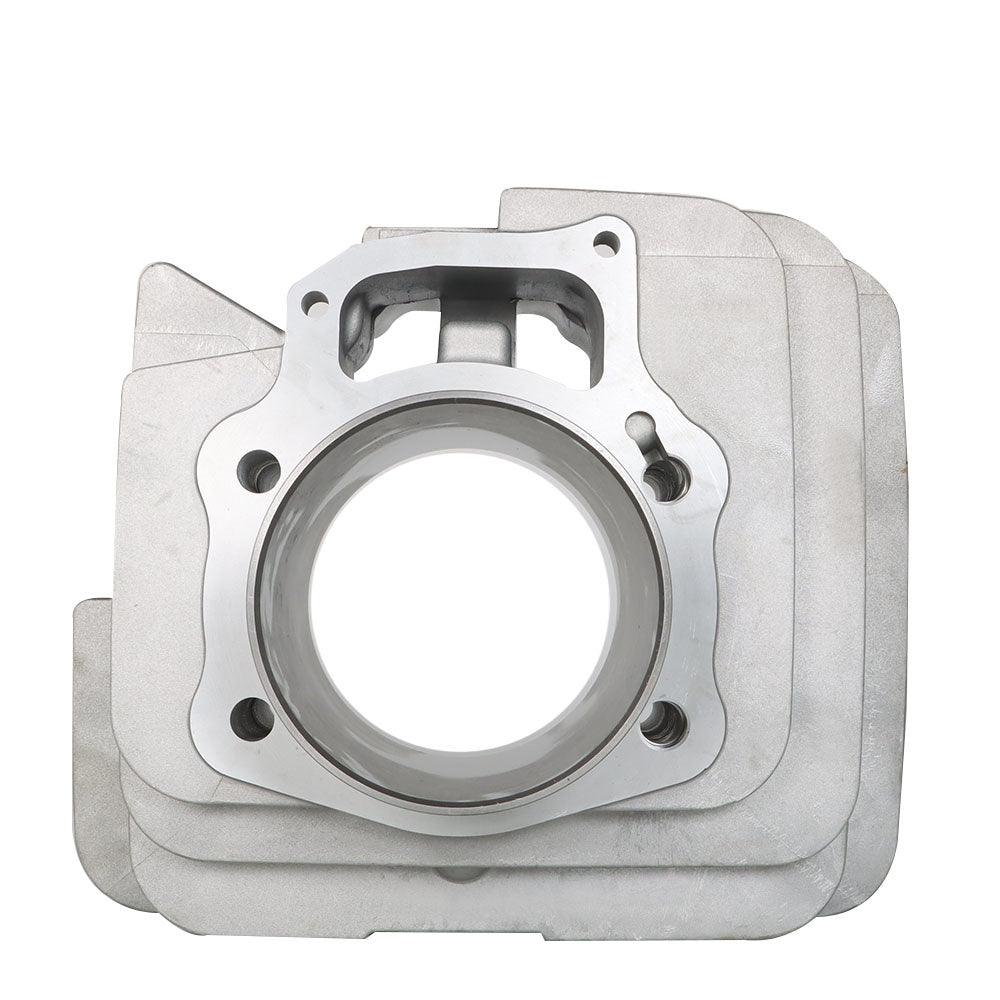

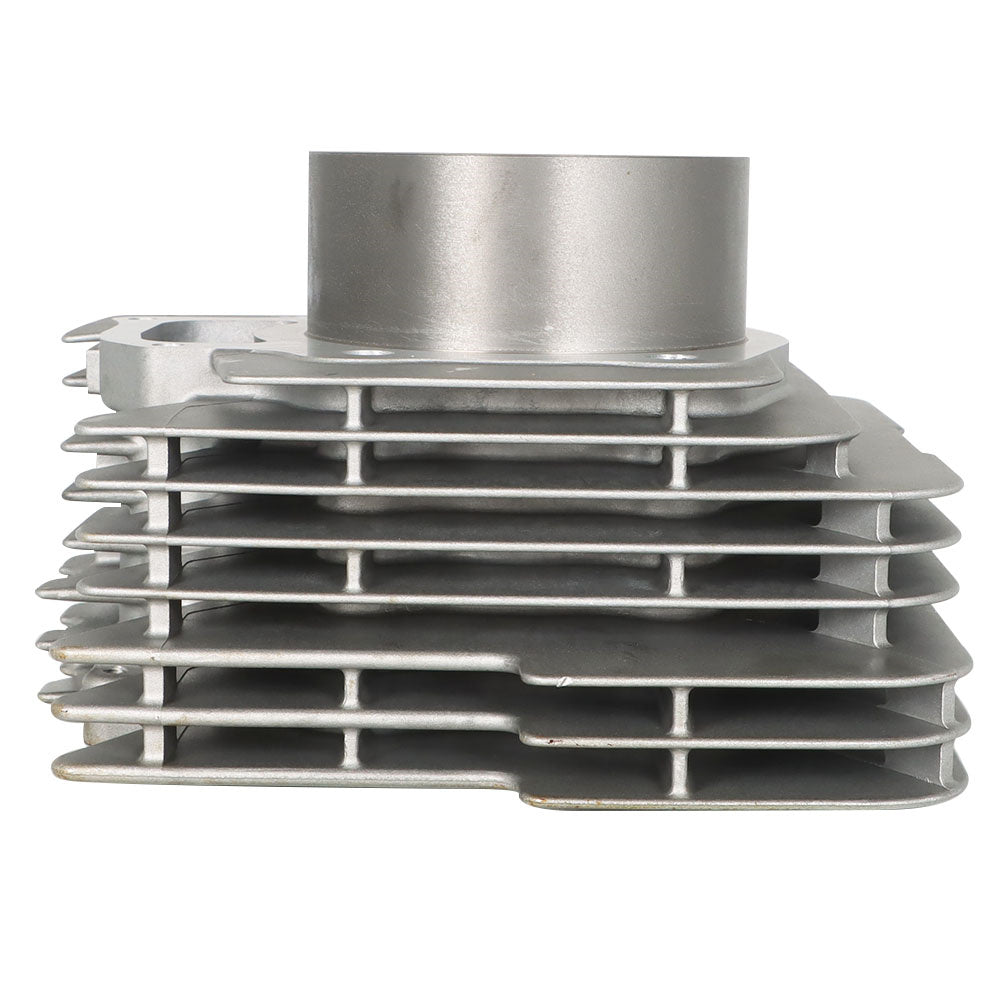

- 1x Cylinder
- 1x Piston(STD)
- 1x Piston Ring Set
- 1x Circlip(2)
- 1x Cylinder Base Gasket
- 1x Cylinder Head Gasket
- 1x Cylinder Head Cover Gasket
